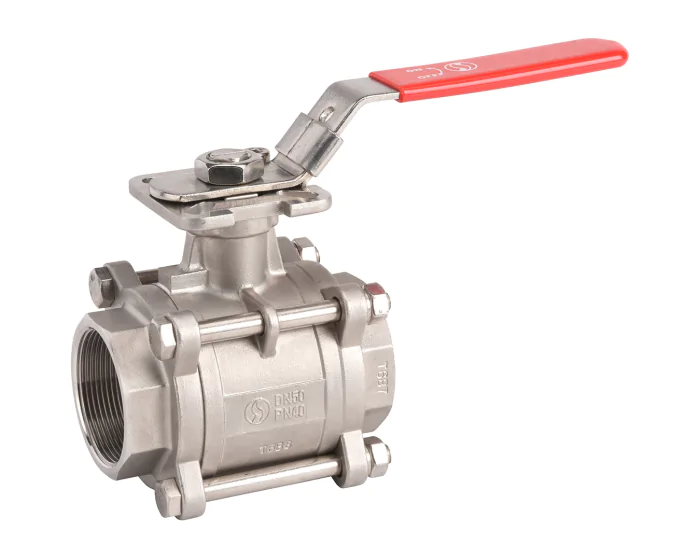

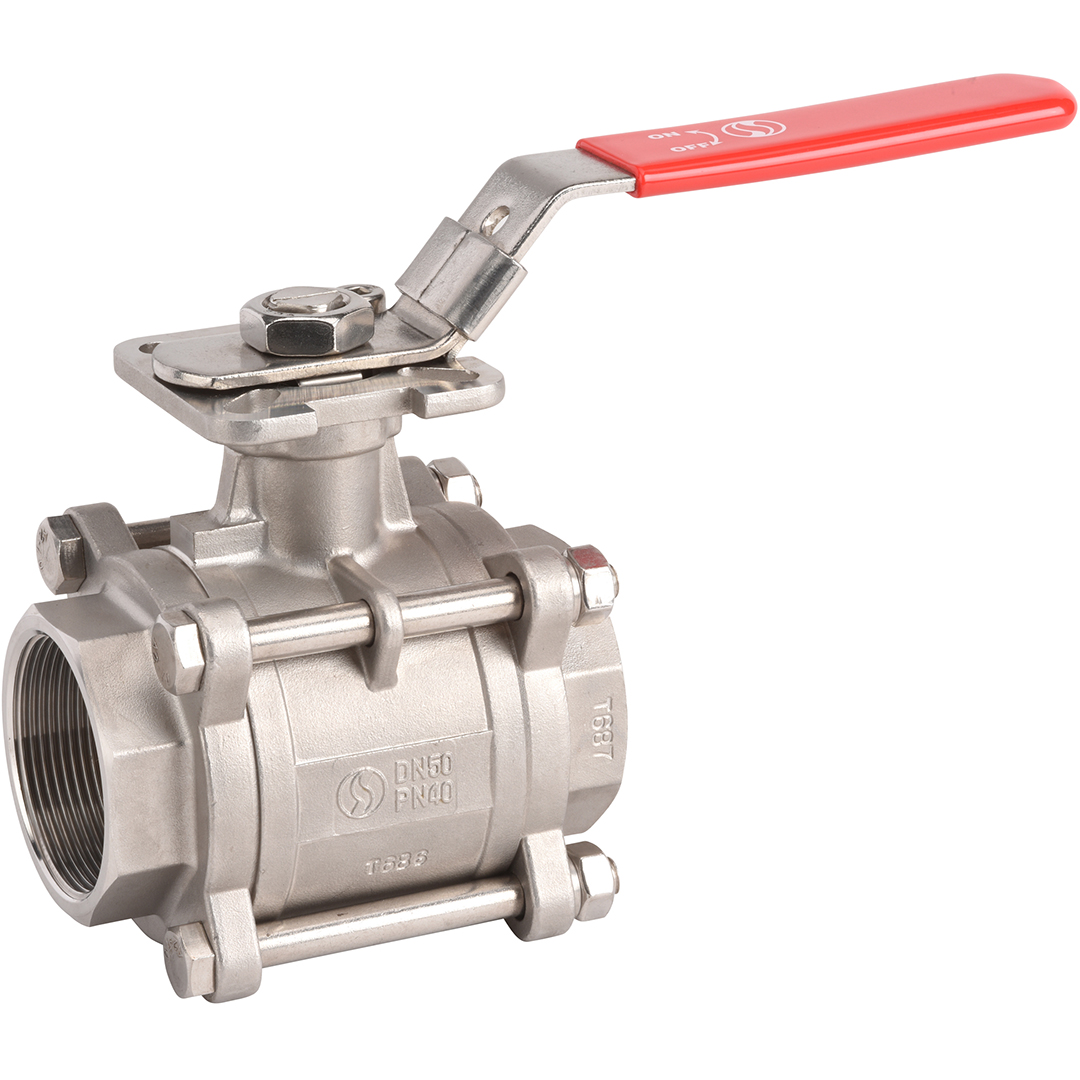

The 743 series 3-piece body ball valve with ISO pad 5211 , NPT, full bore for fluid shut-off in chemical and pharmaceutical systems.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ANSI B1.20.1 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 2 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 895.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20.7 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | NPT FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel CF8M (1.4408) Full 3-piece body 1/2'' | 743004 | S1008149 |
€21.84
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 3-piece body 3/4'' | 743005 | S1008150 |
€24.36
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 3-piece body 1'' | 743006 | S1008151 |
€33.21
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 3-piece body 1''1/4 | 743007 | S1008152 |
€45.06
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 3-piece body 1''1/2 | 743008 | S1008153 |
€60.74
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 3-piece body 2'' | 743009 | S1008154 |
€96.61
(excl. btw)
|
add to cart |
